Malekko Malekko Power

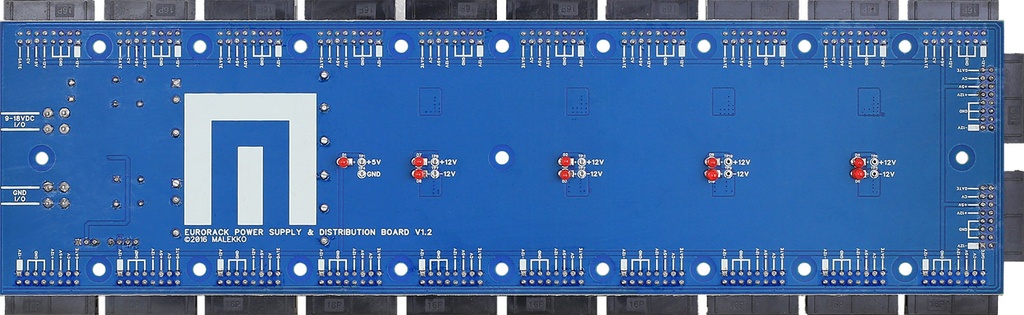

EuroRack Power Supply & Distribution Bus

Malekko Power for EuroRack has finally arrived! Utilizing a unique power architecture with switching power supplies cascaded to four pairs of linear regulators, it is designed for low noise and stability.  With separate regulator pairs per output quadrant, noisier modules can be isolated from the rest of your rig.

• 22 shrouded EuroRack power header outputs
• 4 Layer PCB with continuous ground plane
• +12V & -12V outputs at 1.6 Amps each
• +5V output at 1 Amp

BOARD DIMENSIONS: 310MM x 84.99MM

DC POWER BRICK SPECIFICATIONS: 9-18VDC, 6Amps, 2.5mm Barrel Connector (Center Positive)

RECOMMENDED DC POWER BRICK:
Mean Well GST90A15-P1M
15VDC, 6Amps, 90W MAX, 2.5mm Barrel Connector (Center Positive)
http://www.mouser.com/Search/ProductDetail.aspx?qs=V113mesSgrhCAod2rat11A%3d%3d
