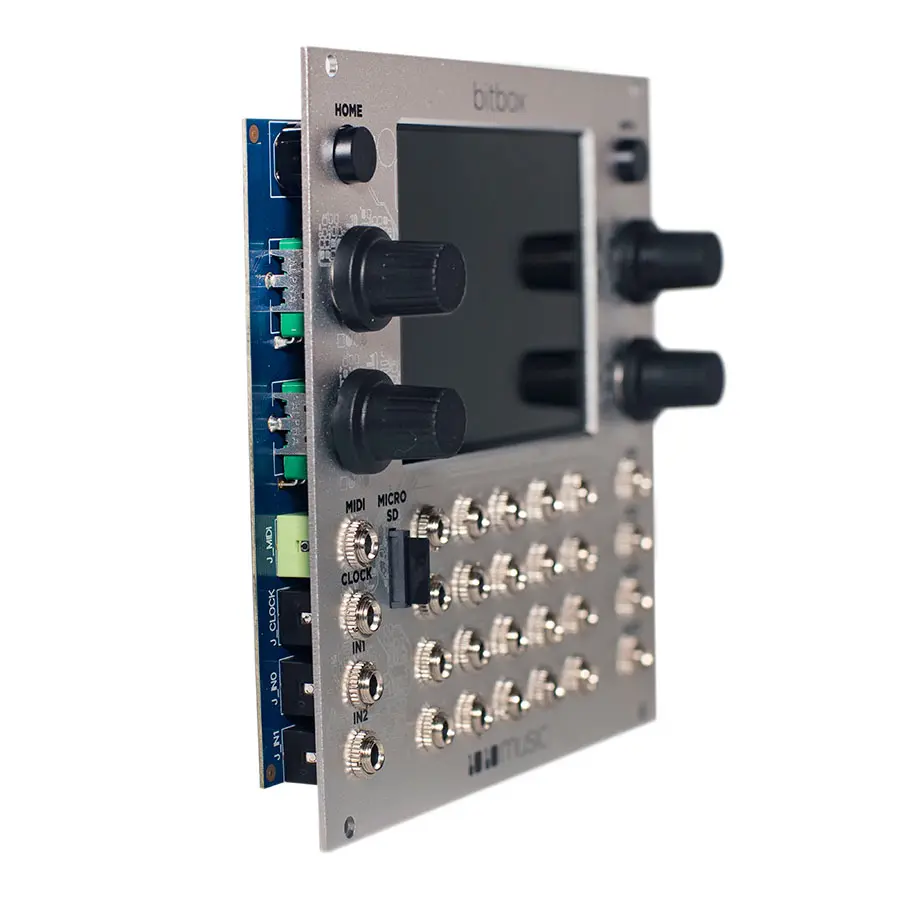

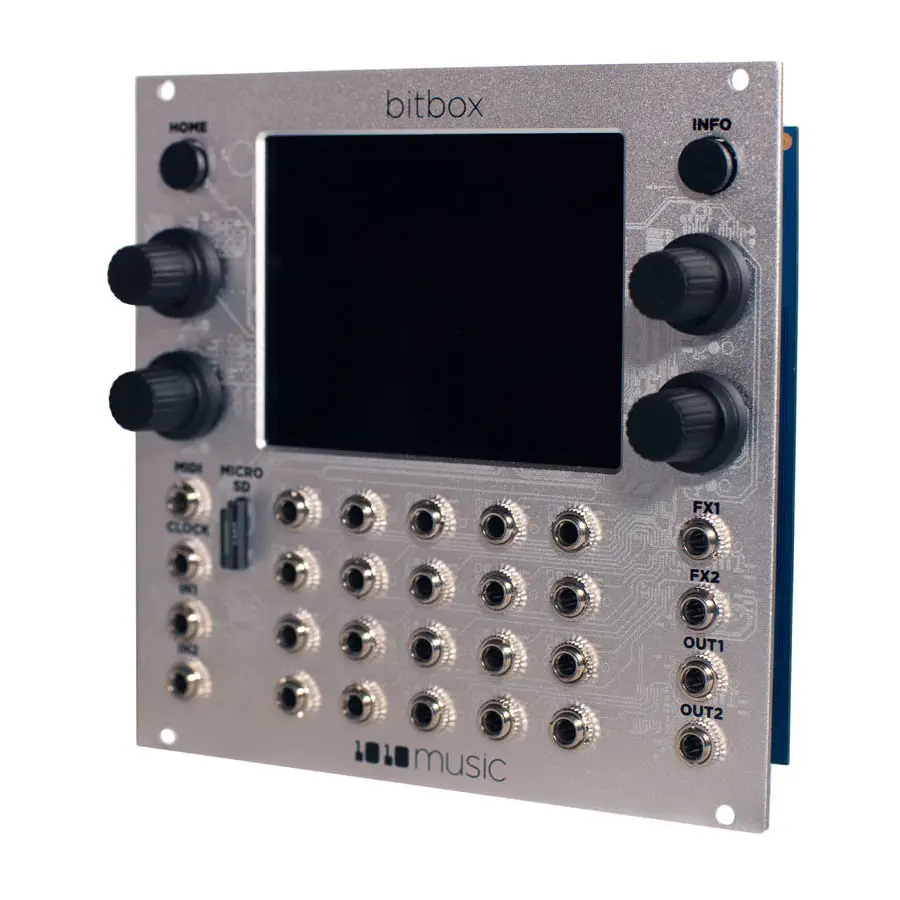

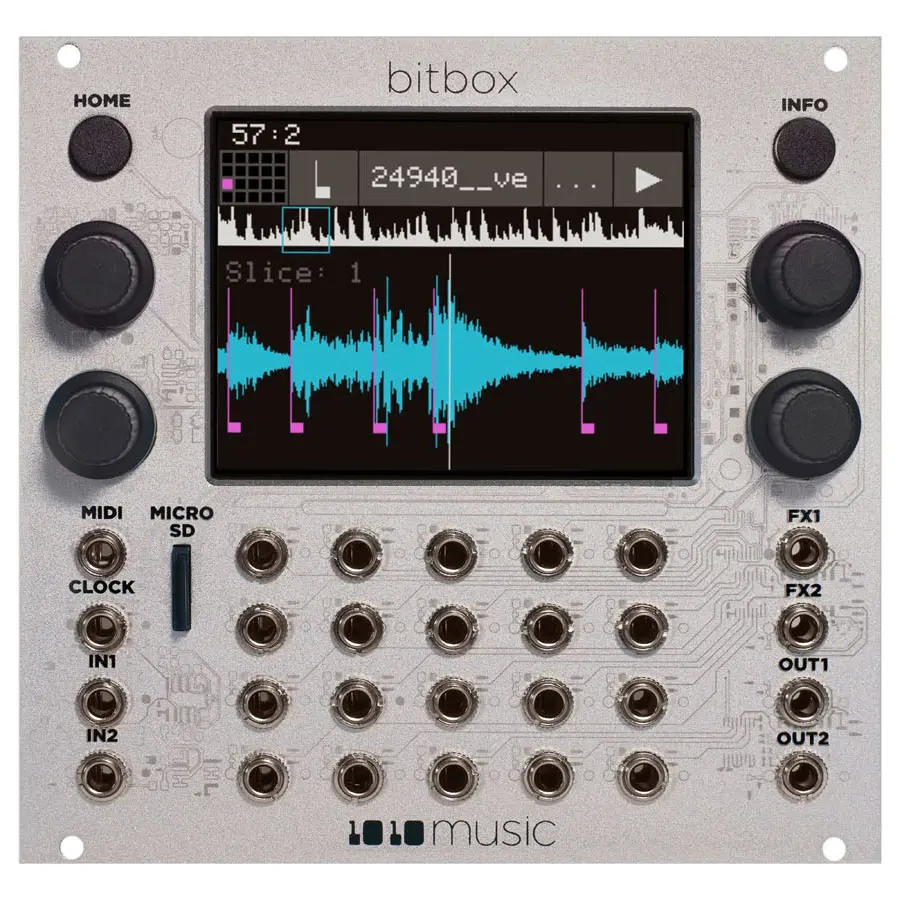

1010 Music bitbox mk2

Intuitive Sampling Module

Bitbox mk2 delivers powerful sampling and mangling for Eurorack. With this module you can add recording, sample playback, clip launching, slicing, granular sounds and musically intelligent looping capabilities to your Eurorack rig. With a 3.5 inch touchscreen, bitbox mk2 makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. Tweak your configurations to get them just right, then save them to multiple presets for future reuse. With the new bitbox mk2 hardware, you can now do more with the new more powerful processor.You can also download fxbox and synthbox firmware from our forum and install it on your bitbox mk2 to get three modules in one.  Swap to the fxbox firmware to get effects processing, or the synthbox firmware to play with wavetable synthesis.

Next Generation Sampling Module for Eurorack

The bitbox mk2 is a follow up to our successful bitbox module.  Do more with bitbox mk2’s more powerful processor and improved touch screen.  This module has all of the features of the original bitbox and adds effects and mixing capabilities that take advantage of the faster and more powerful processor.

When you purchase a bitbox mk2, you will receive:

• a bitbox mk2 Eurorack module
• a microSD card with with a bank of demo presets and samples loaded on it
• a Eurorack power cable
• a bitbox mk2 Quick Start guide
• a MIDI Adapter

Technical Specs

• Supports 1 and 2 channel WAV files with 16, 24 or 32-bit resolution at any sample rate (48kHz preferred)
• 26 HP
• Module dimensions including knobs: 5.25″ x 5″x 1.75″
• Depth behind front panel with ribbon cable: 1.25″
• +12V: 400mA
• -12V: 0mA
• 5V: 0mA
• 24-bit ADC and DAC
