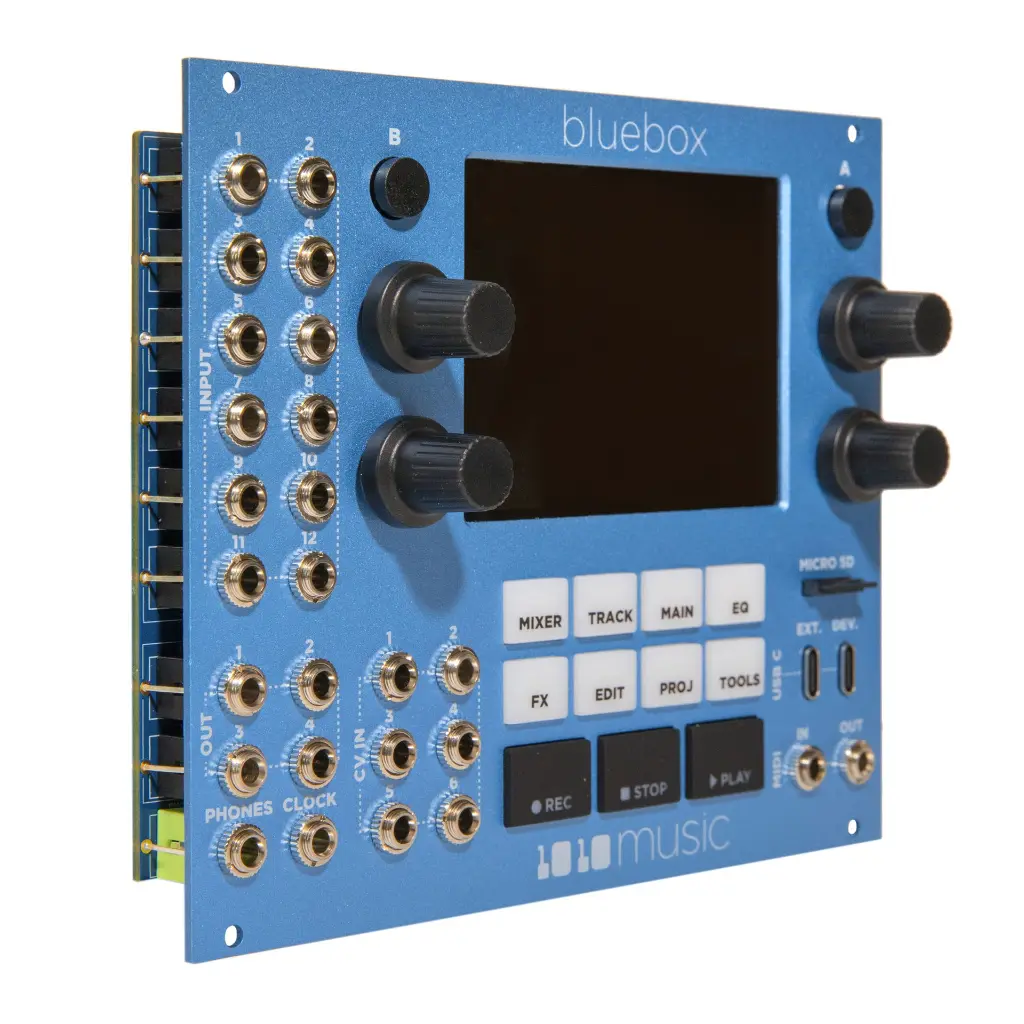

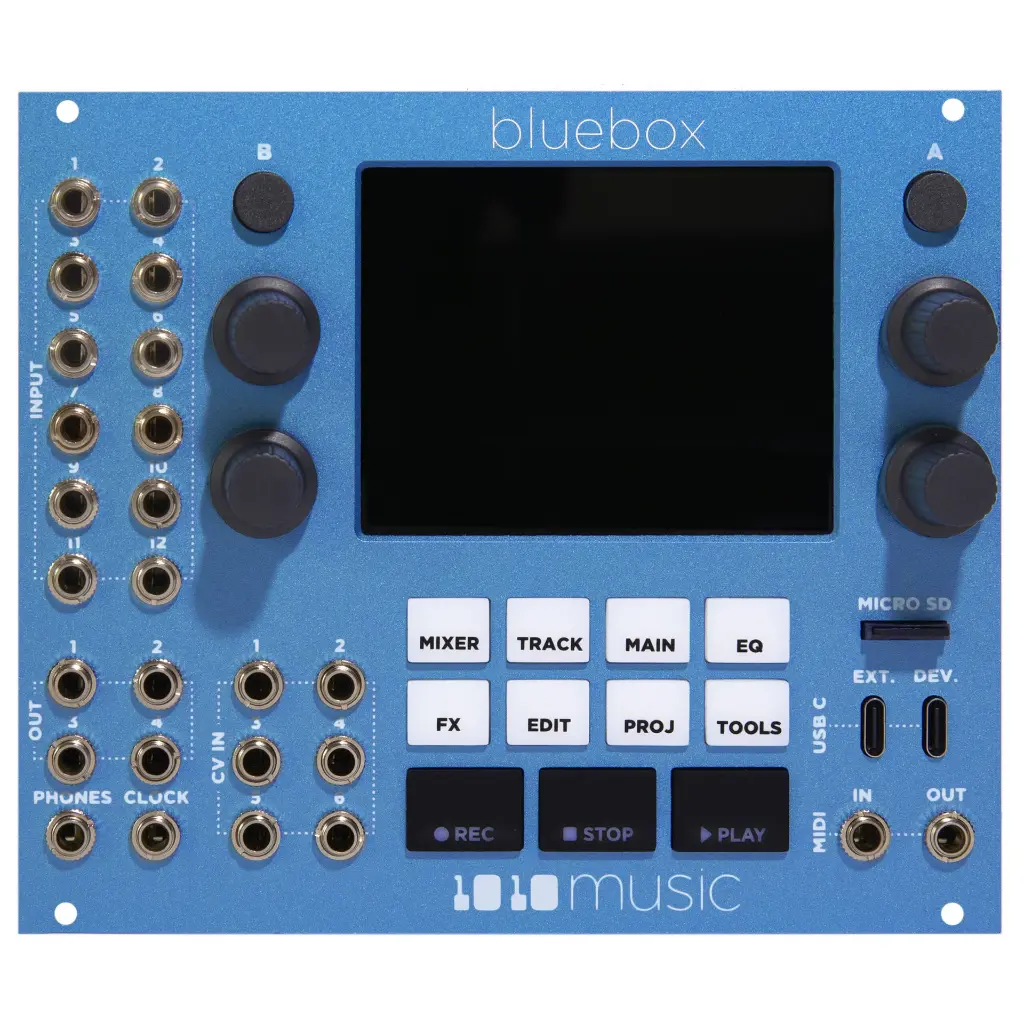

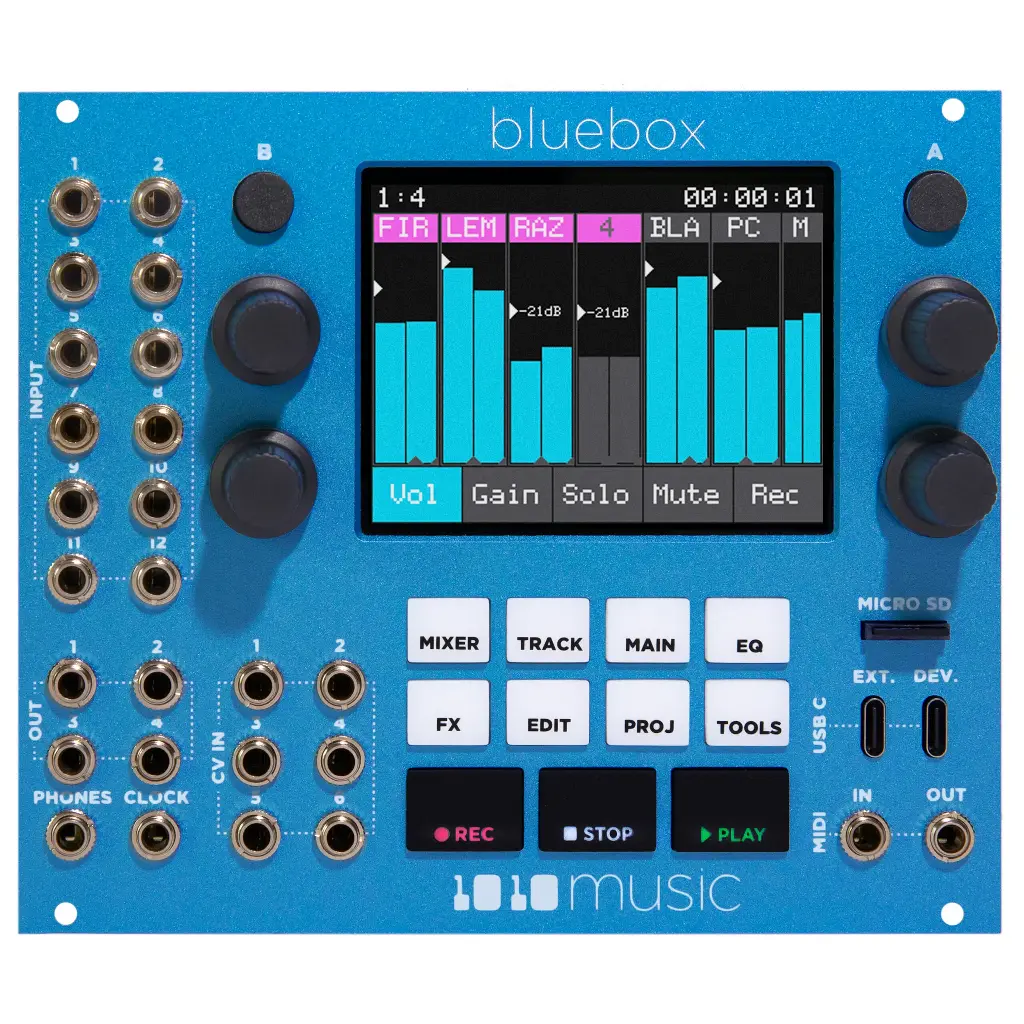

1010 MUSIC bluebox Eurorack Edition

The bluebox Eurorack edition is the new Eurorack mixer with effects and multichannel recording/playback based on the award-winning bluebox desktop mixer. With the Eurorack edition’s USB-C EXT port, you can send 2 channels of audio to and from your computer. Plus, you can control up to 6 mix settings with the 6 CV inputs. Whether recording your Eurorack jams, using it to play stems as backing tracks, or a combination of both – bluebox Eurorack edition will rock your rack!

The Ultimate Mixer Meetup for all your Modules!

The bluebox Eurorack edition is the elegant way to get high-quality mixing, effects and integrated recording and playback all in one super-optimized 30 hp form factor. Like all 1010music products, it uses a touchscreen with knobs to let you quickly control volume, gain, 4 band parametric EQ, pan, reverb and delay effects, mute/solo and record/play functions for each track – all with a fast, fluid, intuitive workflow.

Connect your eurorack, sampler, drum machine, and synthesizer outputs to 12 mono, 3.5 mm inputs and map them to 12 mono tracks or 6 stereo tracks – all with independent control for recording and playback. Connect your computer to the USB C port to send and receive two channels of audio.

The bluebox Eurorack edition is the ultimate in compact mixing, effects, recording, and playback for Eurorack. Smack it in your rack and hit the road with a self-contained, electronic music powerhouse!

When you purchase a bluebox Eurorack edition, you will receive:

• a bluebox Eurorack edition 30 HP Eurorack module
• A microSD card with bluebox firmware and pre-loaded project files
• two Eurorack power cables
• a bluebox Eurorack edition Quick Start guide
• two MIDI Adapters

Dimensions & Power

• 30 HP
• Module dimensions including knobs: 6″ x 5″x 1.6″
• Depth behind front panel with ribbon cable: 1.0″
• Requires the +5V rail which may not be present
  on some older racks.
• Uses 500-850mA at +5V (depending
  on screen brightness), 320 mA at +12V, and 82mA at -12V
• Requires two power connections

Capabilities

• 12 mono tracks, 6 stereo tracks or something in between
• Connect to TRS or USB C MIDI for beat syncing effects
• Lots of headroom with support for Eurorack levels up to +/-5V inputs and outputs
• 3 effects: reverb, delay and compressor
• Records and plays back 48k, 24-bit audio WAV files
• 4 band EQ per track
• Durable aluminum faceplate
• Stream 2 channels of audio in and out over USB C
