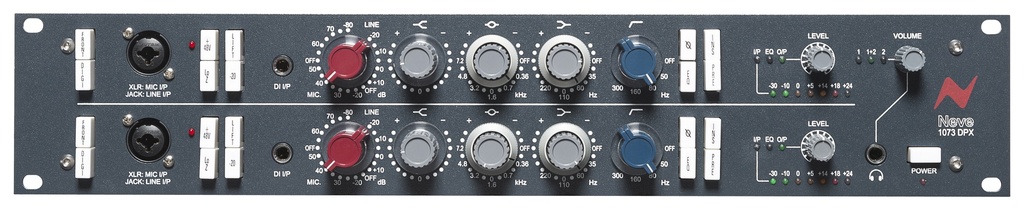

AMS-Neve 1073DPX
Vintage Dual Preamp with eXtra features
SKU |
AMSNEVE1073dpx |
Unit of Measure |
piece |
Category |
Preamp , Equalizer , Channel Strip |
AMS Neve announces the new 1073DPX dual 1073 microphone preamp/EQ unit. Using the same revered Neve 1073 circuit design and genuine components, matched with modern manufacturing techniques, the 1073DPX delivers the best sounding microphone preamplifier & EQ unit with convenient extra features for an unbeatable price.
Features:
- 2 independent, genuine Neve 1073 transformer-coupled microphone preamplier / EQ circuits, in a single 2U 19" rack mount enclosure
- Exclusive Neve Marinair™ transformers used on each input and output stage.
- Convenient connections for Mic, Line & DI inputs on front of unit, with switchable mic/line input connections on the rear of the unit
- Switchable +48v Phantom Power, Hi/Lo impedence, -20dB pad and DI ground lift on the input stage
- Switchable Phase, and EQ in/out
- Insert Send and Return loop feature allows external equipment to be connected easily to the 1073DPX audio chain, such as mono/stereo limiter/compressors;
- Pre-EQ insert send/return - a line level send is available from the mic-preamp output stage and a return just before the EQ stage
- Post-EQ insert send/return - a line level output send is available from the post EQ stage and a return just before the main output stage
- Independent channel output level controls
- 7-stage LED signal level meters for each channel - can show mic/line/DI input-stage level, EQ-stage level or output-stage level up to +24dB
- Headphone output with adjustable volume control, can listen to channel 1, channel 2 or both channels combined
- External multi-voltage PSU
Optional digital I/O card - available mid-2015, price TBA - can be easily retro-fitted to existing units.
| Kivitel | |
|---|---|
| 19"-es Rack | Igen |
| Funkciók | |
| EQ / Filter | Igen |
| Microphone Preamplifier | Igen |
| Others | |
| Csatornaszám | 2 |
| Megjelenés Dátuma | 2015-02-26 |
