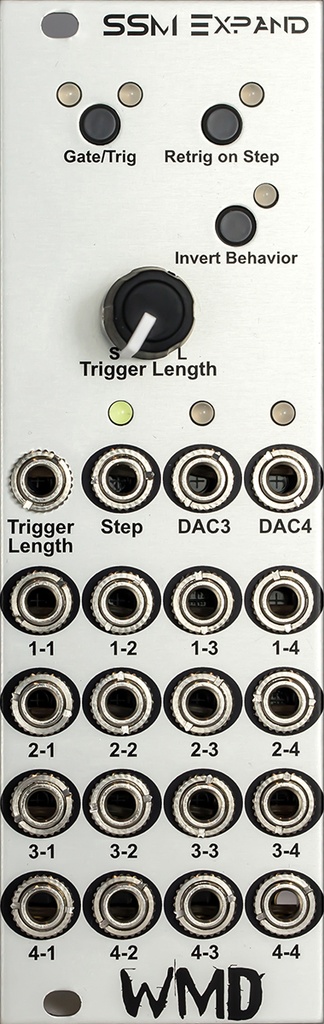

WMD SSM Expander
Termékkód: WMDSSMexp
Mennyiségi egység: db
Provides extended functionality of the SSM
The SSM Expand 8 HP module provides extended functionality of the SSM.
- Gate/Trig: Gate (Green LED lit) provides 10V outputs for each routing button. It mirrors the routing shown by the SSM LEDs. Trig mode (Red LED lit) will output a trigger when a step (CV, Step/Gate or Reset) is taken. Pushing a routing button will not change the output thus providing synchronized triggers.
- Trigger Length: CV and knob provide adjustable trigger length.
- Retrig on Step: When on, gates and triggers will retrigger quickly when a step is taken.
- Invert Behavior: When on, routings that are OFF will produce ON triggers or Gates.
- DAC3/4: Two 4 bit DAC outputs that output a weighted 4 bit voltage between 0 and 5 volts. From routing columns 3 and 4.
- Step: Outputs a trigger for each step, reset or CV change that is made to the SSM.
Installation: Connect the 20 pin ribbon cable to the GTExp header on the SSM, and the ToSSM connector on the Expand. Red Stripe Down.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifikációk
| Szélesség (HP-ben) | 8 |
| Eurorack | Igen |
